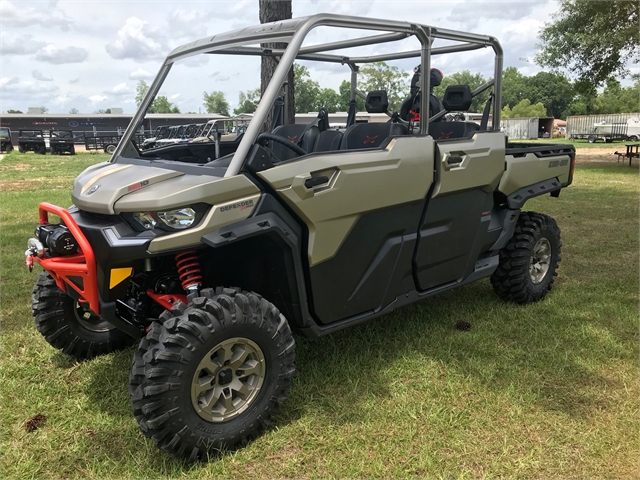

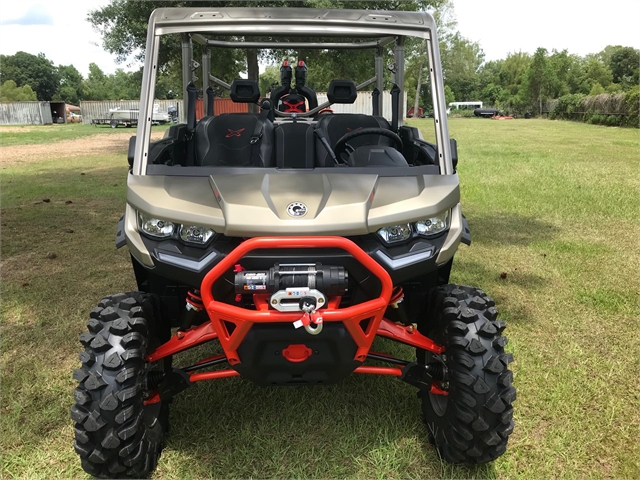

2023 CAN-AM Defender MAX X mr HD10

1.99@36 OR 3.99%@60 W.A.C.

Stock #PK002064C
MSRP: $27,999 USD
Get More Details! Hi, my name is and I'm interested in this 2023 CAN-AM HD10 MAX XMR X mr HD10 - 1.99@36 OR 3.99%@60 W.A.C. . I'm in the area and you can reach me at or on my phone at .




Details
  • Status:
    New
  • Vehicle:
    2023 CAN-AM Defender MAX X mr HD10
  • VIN:
    3JBUAAX48PK002064
  • Model Number:
    #XmrHD10
  • Color:
    TITANIUM/RED
  • Stock Number:
    PK002064C
  • Title:
    Clear
  • Location:
    ATV Zone, LLC
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Brand:
    Smart-Lok™
  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    4
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    3.58
  • Bore (mm):
    91
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    976
  • Displacement (ci):
    59.5
  • Engine Brand Name:
    Rotax®
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    82
  • Horsepower (kW):
    61.2
  • Starter:
    Electric
  • Stroke (in):
    2.95
  • Stroke (mm):
    75
  • Torque (Ft Lbs):
    69
  • Torque (Nm):
    93.6
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Cab Door Material:
    Soft
  • CV Boot Cover:
    Yes
  • Frame:
    Steel
  • Front Mud Guards:
    Yes
  • Full Length Skid Plate:
    Yes
  • Rear Mud Guards:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Folding:
    Yes
  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    454
  • Bed Capacity (lbs.):
    1000
  • Bed Height (in):
    12
  • Bed Height (mm):
    305
  • Bed Length (in):
    38
  • Bed Length (mm):
    965
  • Bed Width (in):
    54.5
  • Bed Width (mm):
    1384
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    4

SUSPENSION

  • Adjustment Type:
    Shock Mounted Adjustment
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Type:
    Double A-Arm
  • Front Travel (in):
    12
  • Front Travel (mm):
    305
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Trailing Torsional A-arms (TTA-HD)
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent
  • Rear Travel (in):
    12
  • Rear Travel (mm):
    305

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    934
  • Dry Weight (lbs):
    2060
  • Engine Displacement to Weight (cc):
    0.47
  • Fuel Capacity (gal):
    10.6
  • Fuel Capacity (l):
    40
  • Ground Clearance (in):
    15
  • Ground Clearance (mm):
    381
  • Height (in):
    82
  • Height (mm):
    2083
  • Length (ft):
    13.49
  • Length (ft/ft):
    13
  • Length (ft/in):
    5.9
  • Length (in):
    161.9
  • Length (mm):
    4112
  • Payload Capacity (kgs):
    730
  • Payload Capacity (lbs):
    1550
  • Storage Capacity (cuft):
    2.6
  • Storage Capacity (gal):
    16.9
  • Storage Capacity (l):
    63.9
  • Towing Capacity (kgs):
    1134
  • Towing Capacity (lbs):
    2500
  • Wheelbase (in):
    115.5
  • Wheelbase (mm):
    2940
  • Width (in):
    64
  • Width (mm):
    1626

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041
  • Weight (lbs):
    4500

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    PRO-TORQ
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    XPS Swamp Force 30 x 9-14
  • Front Tire Diameter (in):
    30
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    XPS Swamp Force 30 x 11-14
  • Rear Tire Diameter (in):
    30
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tread Type:
    Knobby
  • Wheels Composition:
    Aluminum
