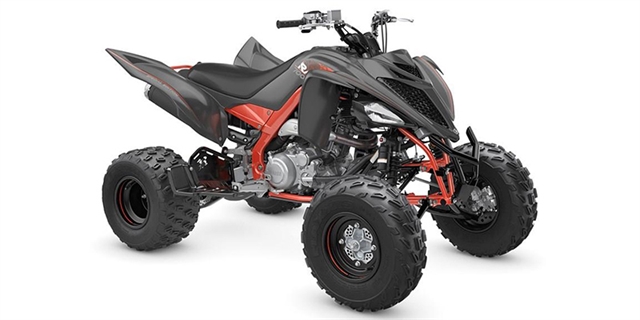

2023 Yamaha Raptor 700R SE

Stock #Pre-Order

‹ ›

Reset Zoom

‹ › - +

‹ ›

Pre-Order Now! Hi, my name is and I'm interested in this 2023 Yamaha Raptor 700R SE . I'm in the area and you can reach me at or on my phone at .

What is your preferred method of contact?

Is this unit available?

What payment terms are available?

When can I test ride this unit?

Details

Status:
New
Vehicle:
2023 Yamaha Raptor 700R SE
Color:
Grey Metallic
Location:
ATV Zone, LLC
Warranty:
Manufacturer's w/ Extended Available

Specifications

BRAKES

Front Brake Type:
Dual Hydraulic Disc
Rear Brake Type:
Hydraulic Disc

DRIVE LINE

Driveline Type:
4X2
Number Of Driveline Modes:
1
Rear Solid Axle:
Yes

ENGINE

Bore (in):
4.02
Bore (mm):
102
Carburetion Type:
Fuel Injected
Compression Ratio:
10.0
Cooling:
Liquid
Cylinders:
1
Displacement (cc):
686
Displacement (ci):
41.9
Engine Stroke:
4-Stroke
Engine Type:
Single-Cylinder
Fuel Injector Size (mm):
44
Fuel Injector:
Yes
Fuel Requirements:
Regular
Fuel Type:
Gas
Starter:
Electric
Stroke (in):
3.31
Stroke (mm):
84
Valve Configuration:
SOHC
Valves Per Cylinder:
4
Valves:
4

EXTERIOR

Bash Plate (Front):
Yes
Body Material:
Plastic
Floor Board Location:
Driver
Foot Peg Location:
Driver
Frame:
Aluminum / Steel

INSTRUMENTATION

Fuel Level Warning Type:
Light
Temperature Warning Type:
Light

LIGHTS

Type:
LED

SEATS

Number Of Seats:
1
Seat Height (in):
32.7
Seat Height (mm):
830.6
Seat Location:
Driver
Seat Material:
Vinyl
Seat Type:
One-Piece

STEERING

Steering Control:
Handlebar
Steering Type:
Manual

SUSPENSION

Front Adjustable Fork Pre-Load:
Yes
Front Adjustable Rebound Damping:
Yes
Front Suspension Type:
Independent Double Wishbone
Front Travel (in):
9.1
Front Travel (mm):
231.1
Number Rear Shock Absorbers:
1
Rear Adjustable Rebound Damping:
Yes
Rear Adjustable Shock / Spring Pre-Load:
Yes
Rear Suspension Material:
Aluminum
Rear Suspension Type:
Swing Arm
Rear Travel (in):
10.1
Rear Travel (mm):
256.5

TECHNICAL SPECIFICATIONS

Engine Displacement to Weight (cc):
1.63
Fuel Capacity (gal):
2.9
Fuel Capacity (l):
11
Ground Clearance (in):
9.5
Ground Clearance (mm):
241.3
Height (in):
43.9
Height (mm):
1115.1
Length (ft):
6.05
Length (ft/ft):
6
Length (ft/in):
0.6
Length (in):
72.6
Length (mm):
1844
Wet Weight (kg):
191.4
Wet Weight (lbs):
422
Wheelbase (in):
50.4
Wheelbase (mm):
1280.2
Width (in):
45.5
Width (mm):
1155.7

TRANSMISSION

Number Of Speeds:
5
Primary Drive (Rear Wheel):
Chain
Reverse:
Yes
Transmission Type:
Manual

WHEELS & TIRES

Front Tire (Full Spec):
Maxxis® AT 22 X 7-10
Front Tire Diameter (in):
22
Front Tire Width:
7
Front Wheel Diameter:
10
Rear Tire (Full Spec):
Maxxis® AT 20 X 10-9
Rear Tire Diameter (in):
20
Rear Tire Width:
10
Rear Wheel Diameter:
9
Tire Brand:
Maxxis®
Tube / Tubeless:
Tubeless
Wheels Composition:
Aluminum
