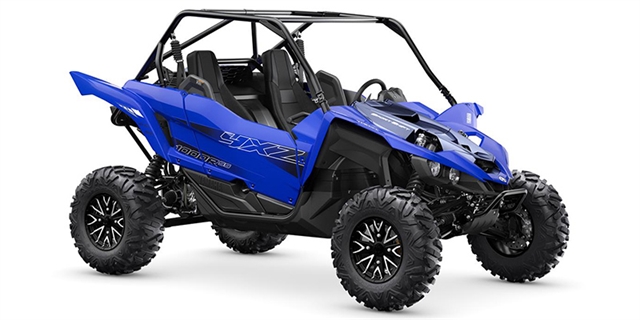

2023 Yamaha YXZ1000R SS

Stock #Pre-Order

‹ ›

Reset Zoom

‹ › - +

‹ ›

Pre-Order Now! Hi, my name is and I'm interested in this 2023 Yamaha YXZ 1000R SS . I'm in the area and you can reach me at or on my phone at .

What is your preferred method of contact?

Is this unit available?

What payment terms are available?

When can I test ride this unit?

Details

Status:
New
Vehicle:
2023 Yamaha YXZ1000R SS
Model Number:
YXZ10YEXPL
Color:
Team Yamaha Blue
Location:
ATV Zone, LLC
Warranty:
Manufacturer's w/ Extended Available

Specifications

BRAKES

Front Brake Diameter (in):
9.6
Front Brake Diameter (mm):
255
Front Brake Type:
Dual Hydraulic Disc
Rear Brake Type:
Dual Hydraulic Disc

DRIVE LINE

Differential Lock Location:
Front
Driveline Brand:
On-Command™
Driveline Type:
Selectable 4X2 / 4X4
Limited Slip Differential Location:
Front
Number Of Driveline Modes:
2

ENGINE

Bore (in):
3.15
Bore (mm):
80
Carburetion Brand:
Mikuni
Carburetion Type:
Fuel Injected
Compression Ratio:
11.3
Cooling:
Liquid
Cylinders:
3
Displacement (cc):
998
Displacement (ci):
60.9
Engine Stroke:
4-Stroke
Engine Type:
Longitudinal In-Line
Fuel Injector Size (mm):
41
Fuel Injector:
Yes
Fuel Requirements:
Regular
Fuel Type:
Gas
Starter:
Electric
Stroke (in):
2.61
Stroke (mm):
66.2
Valve Configuration:
DOHC
Valves Per Cylinder:
4
Valves:
12

EXTERIOR

A-Arm Skid Plate (Front):
Yes
A-Arm Skid Plate (Rear):
Yes
Bash Plate (Front):
Yes
Body Material:
Plastic
Cab Door Material:
Hard
CV Boot Cover:
Yes
Drive Shaft Skid Plate:
Yes
Exhaust Guard:
Yes
Frame:
Steel
Full Length Skid Plate:
Yes
Radiator Guard:
Yes

INSTRUMENTATION

Fuel Level Warning Type:
Gauge
Shift Light Type:
Adjustable
Temperature Warning Type:
Light

LIGHTS

Type:
LED

SEATS

Headrest:
Yes
Number Of Rows:
1
Number Of Seats:
2
Seat Material:
Vinyl
Seat Type:
Bucket

STEERING

Steering Control:
Steering Wheel
Steering Type:
Power

STORAGE

Bed Capacity (kgs.):
136.1
Bed Capacity (lbs.):
300
Cargo Bed Material:
Composite
Integral Tie-Down Hooks:
Yes

SUSPENSION

Adjustment Type:
Spring Mounted Adjustment
Front Adjustable Fork Pre-Load:
Yes
Front Stabilizer Bar:
Yes
Front Suspension Brand Name:
Fox® Podium
Front Suspension Type:
Independent Double Wishbone
Front Travel (in):
16.2
Front Travel (mm):
411.5
Number Rear Shock Absorbers:
2
Rear Adjustable Shock / Spring Pre-Load:
Yes
Rear Stabilizer Bar:
Yes
Rear Suspension Brand Name:
Fox® Podium
Rear Suspension Type:
Independent Double Wishbone
Rear Travel (in):
17
Rear Travel (mm):
431.8

TECHNICAL SPECIFICATIONS

Engine Displacement to Weight (cc):
0.66
Fuel Capacity (gal):
9
Fuel Capacity (l):
34.1
Ground Clearance (in):
13.2
Ground Clearance (mm):
335.3
Height (in):
68.9
Height (mm):
1750.1
Length (ft):
10.25
Length (ft/ft):
10
Length (ft/in):
3
Length (in):
123
Length (mm):
3124.2
Turning Radius (ft):
19.7
Wet Weight (kg):
690.8
Wet Weight (lbs):
1523
Wheelbase (in):
90.5
Wheelbase (mm):
2298.7
Width (in):
64
Width (mm):
1625.6

TRANSMISSION

Number Of Speeds:
5
Primary Drive (Front Wheel):
Shaft
Primary Drive (Rear Wheel):
Shaft
Reverse:
Yes
Transmission Type:
Manual / Automatic Clutch

WHEELS & TIRES

Front Tire (Full Spec):
Maxxis® Bighorn® 2.0 M917 29 X 9.00R-14
Front Tire Diameter (in):
29
Front Tire Width:
9
Front Wheel Diameter:
14
Rear Tire (Full Spec):
Maxxis® Bighorn® 2.0 M918 29 X 11.00R-14
Rear Tire Diameter (in):
29
Rear Tire Width:
11
Rear Wheel Diameter:
14
Tire Brand:
Maxxis®
Tread Type:
All Terrain
Tube / Tubeless:
Tubeless
Wheels Composition:
Aluminum
